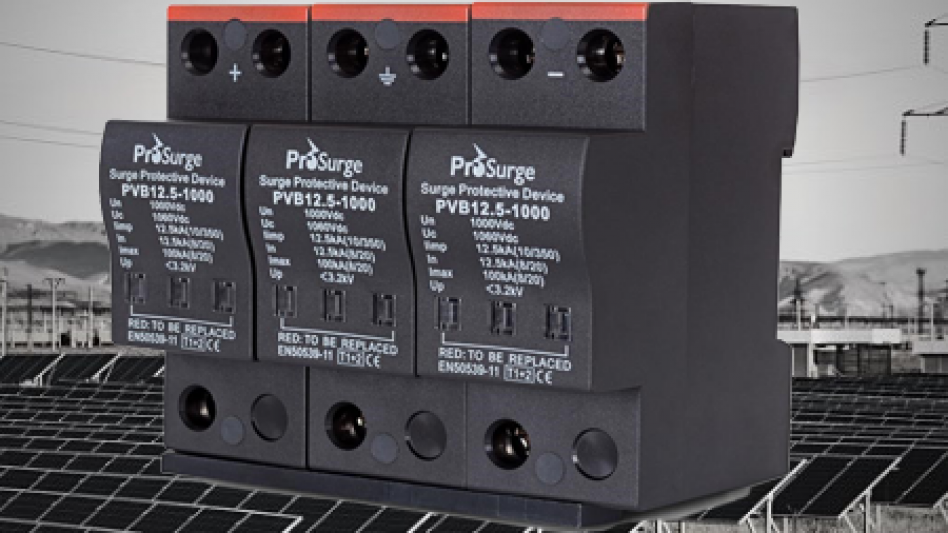

PVB12.5/1000-V-CD(-S) CLASS I+II PV SPD

PVB12.5/1000-V-CD(-S) CLASS I+II PV SPD

SPD for DC/PV

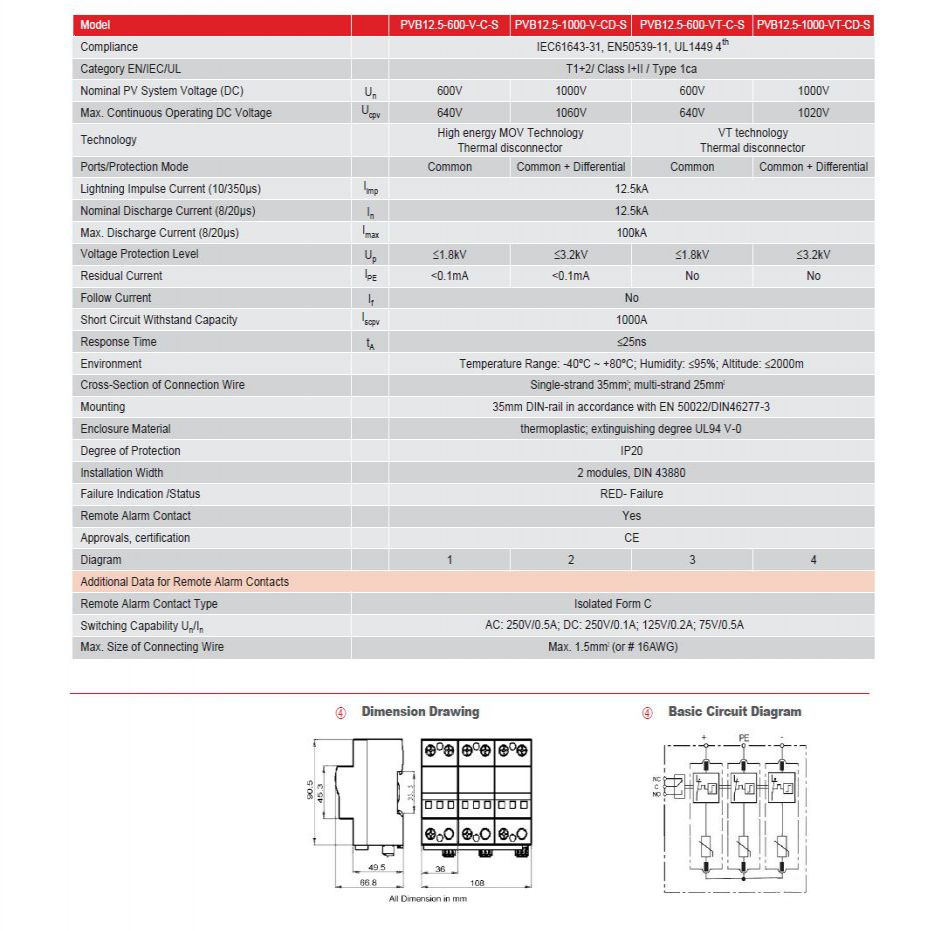

Technical Features

  • Class I+II SPD for use in photovoltaic systems
  • In accordance with IEC61643-11,EN50539-11,UL1449-4th
  • Common mode and differential mode surge protection
  • High surge capability of 12.5kA 10/350 per mode
  • Reliable supervision due to disconnection device
  • Fault indication by red indication flag in window
  • With remote alarm terminal optional

PVB12.5/1000-V-CD(-S) CLASS I+II PV SPD
